Data Entry Display

The DED (Data Entry Display) on the right side of the ICP is used to obtain information about different systems of the aircraft. The display has 5 rows and 24 columns. Most of the obtained information on the DED is selected via ICP. More information can be found at the EFALCON 1.10 documentation. The DED is located at the upper right side of the center console.

The DED is powered with the UFC selector of the Avionics Power Panel.

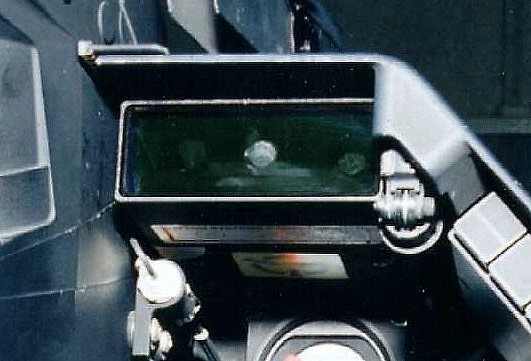

The display
Example from an DED display
Pictures from the Data Entry Displays


The display


ElementTypePositionInformation
DisplayLED Display24 x 5DED informations

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.

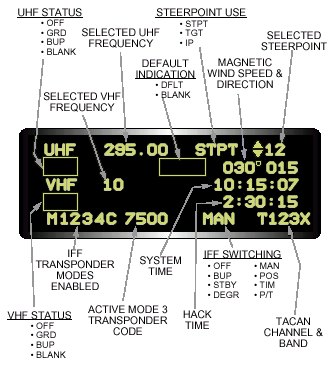

Example from an DED display

Diagram

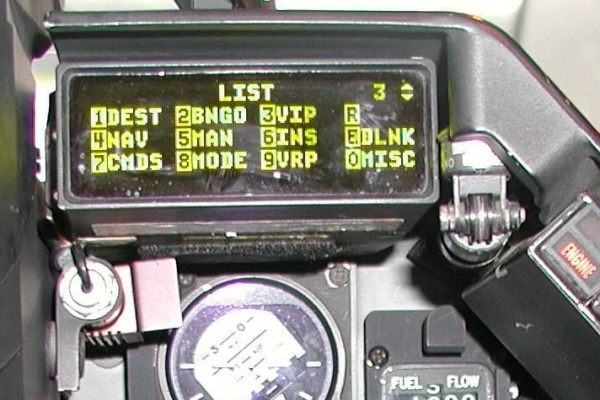

Pictures from the Data Entry Displays



Note:
To zoom please select the picture with your mouse.
