Instrument Mode

Using this panel, the pilot defines which data are shown at the HSI for navigation. TACAN and NAV-Data can be selected. TACAN data is supplied by stations, either in the air or at the ground, while NAV-Data is supplied by fixed positions all ready programmed into the Navigation system of the F-16. This Panel is located at the left side of the HSI at the center console.

The panel and his elements
Pictures from the Instrument Mode Panel


The panel and his elements

Instr


ElementTypePositionInformation
MODERotary switch
(4x30 deg)
ILS TCNNavigation data from TACAN-ILS
TCNNavigation data from TACAN
NAVNavigation data from NAV
ILS NAVNavigation data from NAV-ILS (VOR etc.)
HDGRotary push pot-Calibrate the compass rose

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.

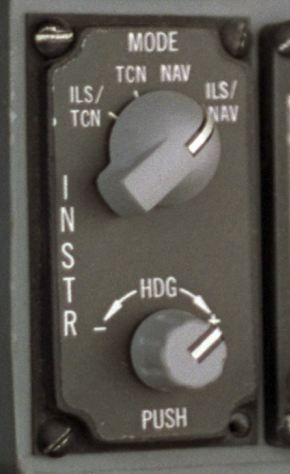

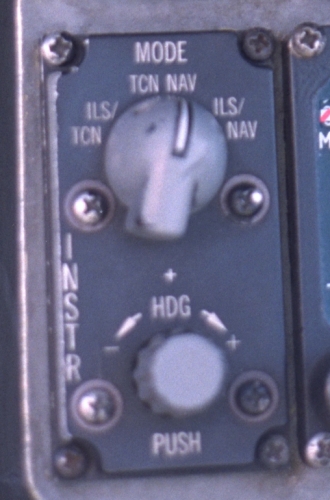

Pictures from the Instrument Mode Panel


Note:
To zoom please select the picture with your mouse.
