Marker Beacon (Outer-, Middle- and Innermarker)

The marker beacon lights up when overflying the outer or middle marker, giving the pilot an additional position information. The markers are Ultra Short Freq. Beacons and are located at the prolonged centerline of a runway at a predeterminated distance of the touch-down area. Military airports use outer, middle and inner markers, while civilian airports only use outer and middle markers. The Marker Beacon is located above the Fuel QTY Sel Panel of the center console.

The Beacon
Technical data to Marker Beacons
Pictures from the Marker Beacon (Outer-, Middle- and Innermarker)


The Beacon

Marker Beacon

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.


Technical data to Marker Beacons

MarkerShortDistanceModulationIdentColor
Outer MarkerOM4,0 NM400 Hz- - -Blue
Middle MarkerMM0,6 NM1.300 Hz- . - . -Yellow
Inner MarkerIM0,1 NM3.000 Hz.......White

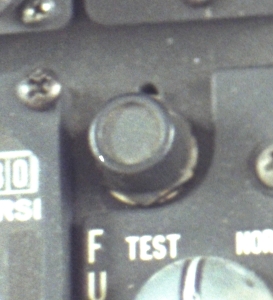

Pictures from the Marker Beacon (Outer-, Middle- and Innermarker)


Note:
To zoom please select the picture with your mouse.
