Multi Function Display

The Multi Function Displays are two screens located at the center console. They are used mainly to operate the weapon systems, specially info about what weapons are available, radar data and optical displays about the weapon in use. Each MFD is surrounded by 20 OSBs (Option Selection Buttons). The function of each of these OSBs is displayed directly on the MFD, according to the selected function area. The MFDs are turned on/off via the MFD switch, located on the Avionics Power Panel. Note: more information about the MFDs can be obtained from the EFALCON 1.10 manual.

The MFDs are produced by Honeywell. Dimensions: 5.25" W x 5.125" H x 11,36" L. The screen is 4" x 4" and has a resolution of 480 x 480 Pixel, 16,7 million colour-shades. The display is an LCD (Liquid Chrystal Display).

The display and his elements

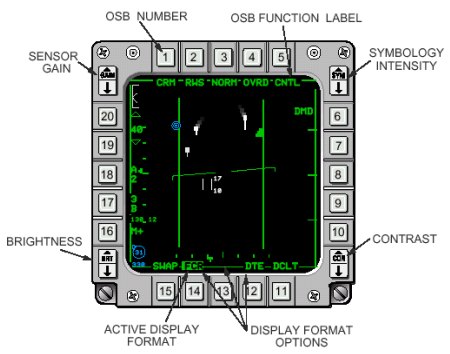

Drawings from the Multi Function Display

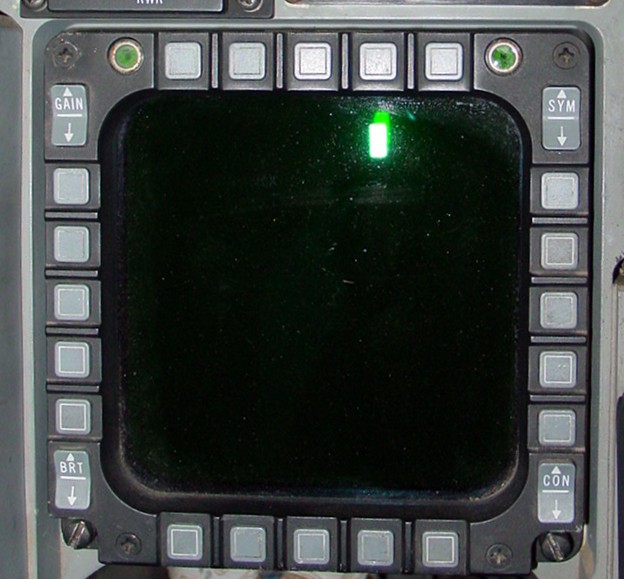

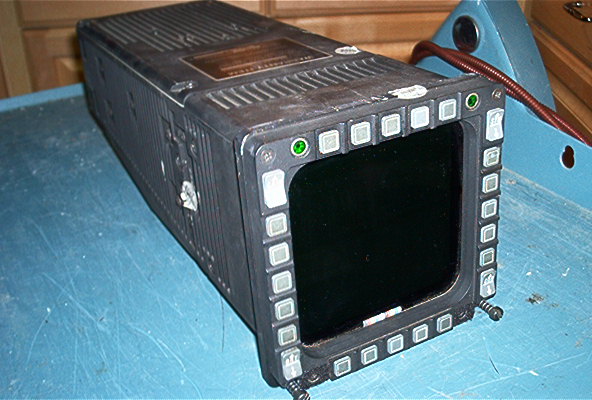

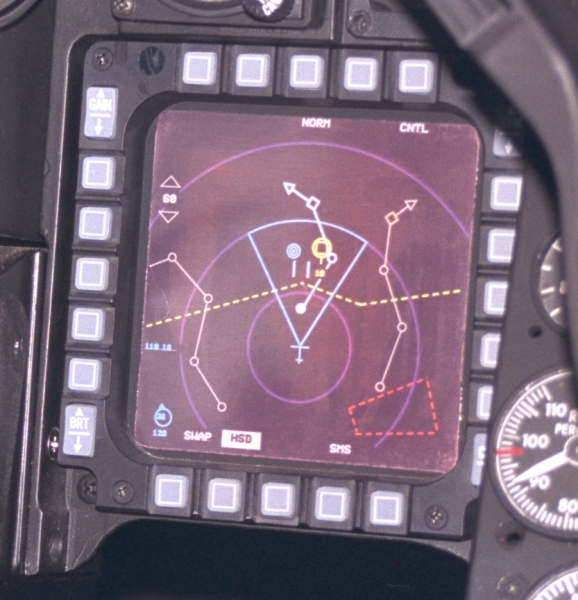

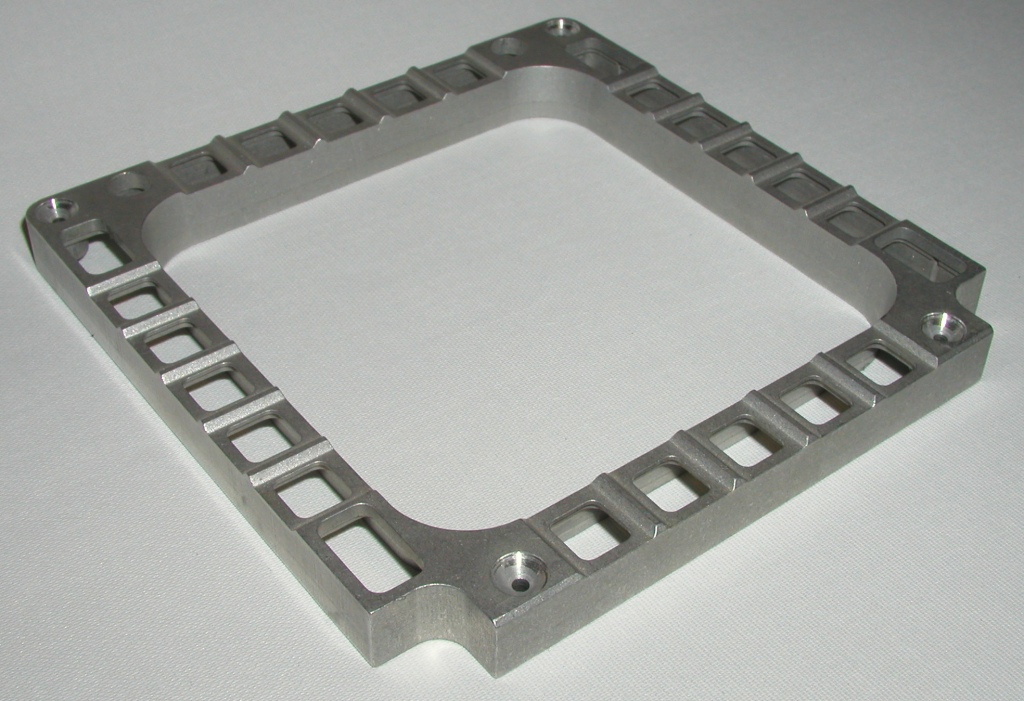

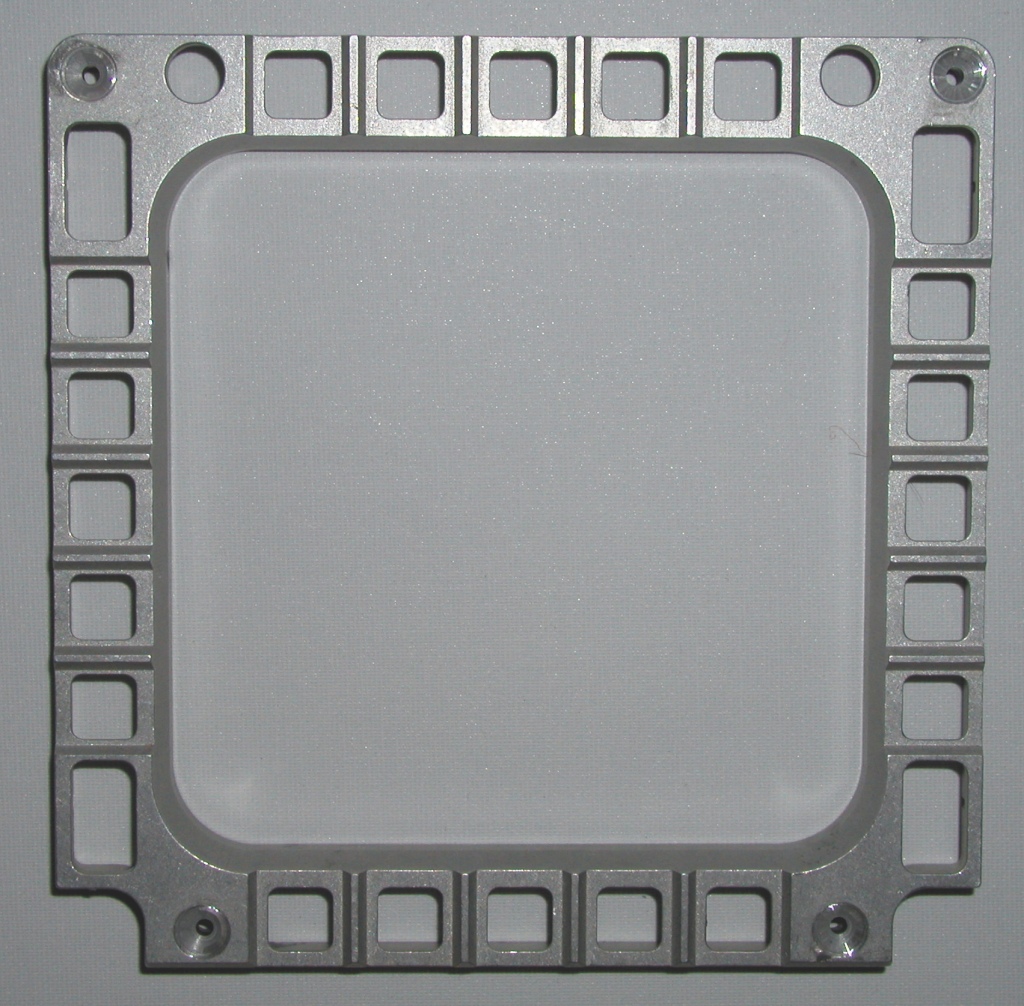

Pictures from the Multi Function Display


The display and his elements

MFD


ElementTypePositionInformation
OSB 1-20Button-Multifunction option
GAINSeesaw buttonTrigger UpSensor Gain up
Trigger DownSensor Gain down
BRTSeesaw buttonTrigger UpBrightness up
Trigger DownBrightness down
SYMSeesaw buttonTrigger UpSymbol brightness up
Trigger DownSymbol brightness down
CONSeesaw buttonTrigger UpContrast up
Trigger DownContrast down

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.

MFD Controls


Drawings from the Multi Function Display


Note:
To zoom please select the drawing with your mouse.


Pictures from the Multi Function Display



Note:
To zoom please select the picture with your mouse.

Source:

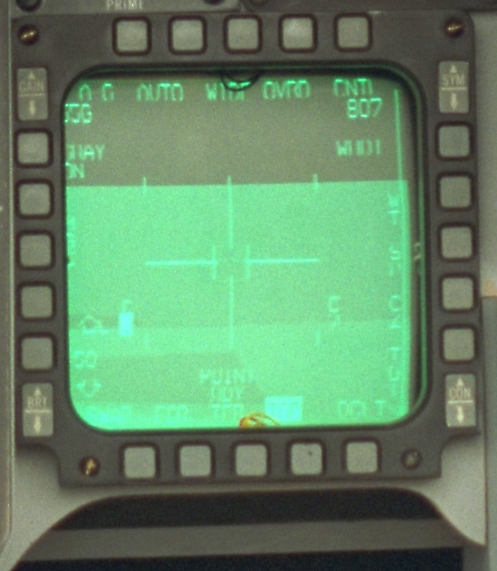

Picture No. 6 was provided by Kostas Kefalas.
