 Right Console 25.09.2002

Right Console

If you want to have more details about every single part of the center console, click with the mouse onto the desired part. They are listed in alphabetical order.

The Right Console with his elements
Pictures from the Right Console


The Right Console with his elements

Right Console


Panel Width (mm) Height (mm) Information
Air Cond ~ 145,50 ~ 57,15 Air Condition Panel
Anti Ice ~ 145,50 ~ 38,10 Anti Ice/Antenna Selector Panel
Avionics Power ~ 145,50 ~ 95,25 Avionics Power Panel
Blank 1 ? ~ 38,10 Growth
Blank 2 ~ 145,50 ~ 28,57 Growth
Blank 3 ~ 145,50 ~ 85,72 Growth
Blank 4 ~ 145,50 ~ 95,25 Growth
Blank 5 ~ 145,50 ~ 38,10 Growth
DTU ~ 145,50 ~ 114,30 Data Transfer Unit
Floodlight     Floodlight
HUD ~ 145,50 ~ 66,67 HUD Remote Control Panel
KY58 ~ 145,50 ~ 123,82 Sec. Voice/Connector Stowage
Lighting ~ 145,50 ~ 114,30 Interior Lighting
MAP/Data Stow.     Map & Data Stowage
Nuclear ~ 145,50 ~ 38,10 Nuclear Consent Panel
Oxygen Reg. ~ 145,50 ~ 76,20 Oxygen Regulator Panel
SNSR PWR 145,50 37,30 Sensor Power Management Panel
Zeroize ~ 75,60 ~ 200,00 Zeroize/Voice Inhibit Panel

Note:
All the dimensions marked with an "~" are either calculated with a grid of 9,54mm or estimated values due to other parameters. Please contact me if you have exact values. All dimensions without the "~" are correct; the measurements were taken from the original panel.

The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.

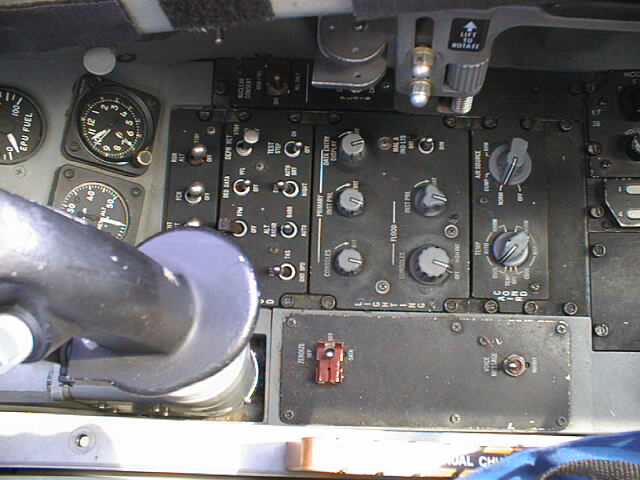

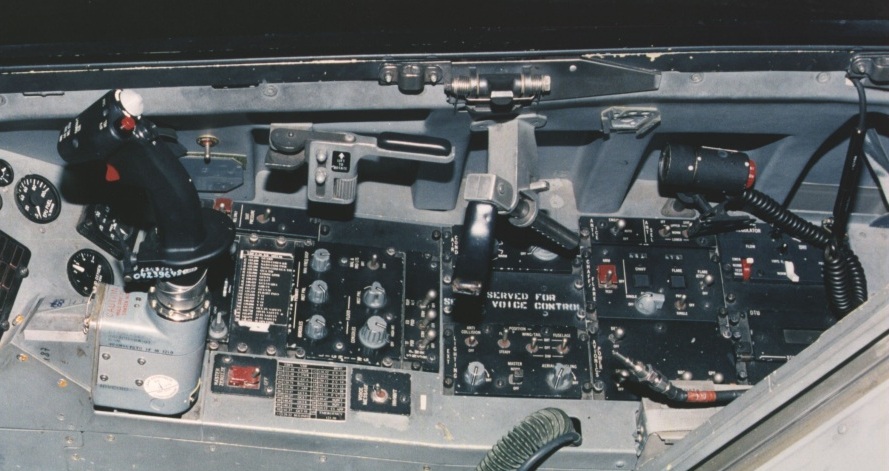

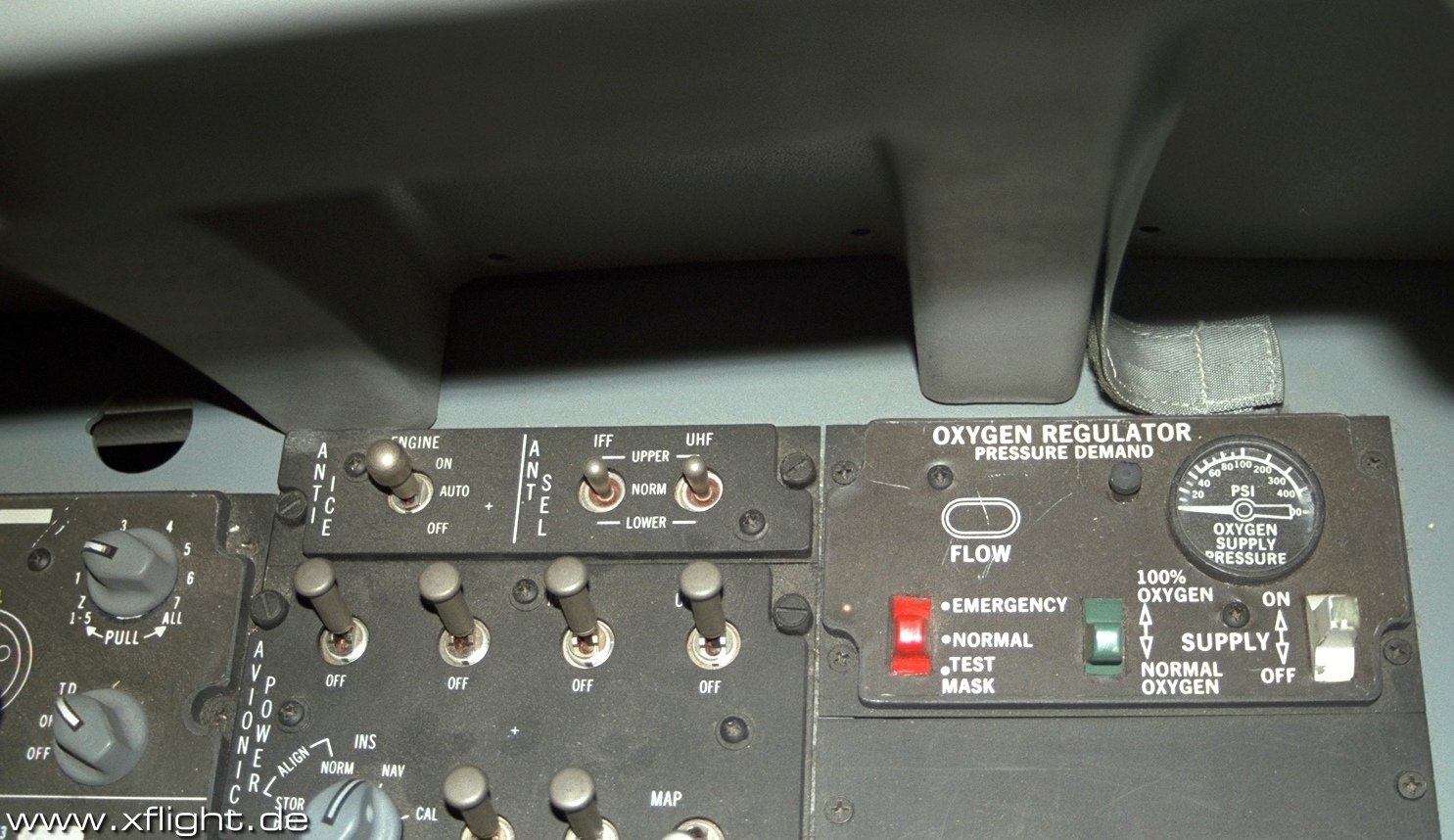

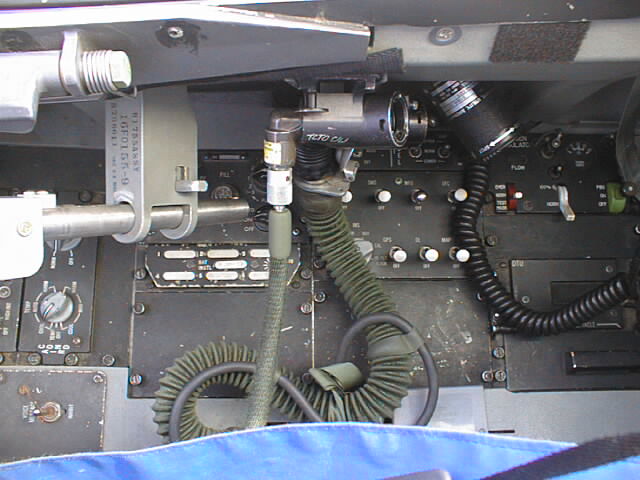

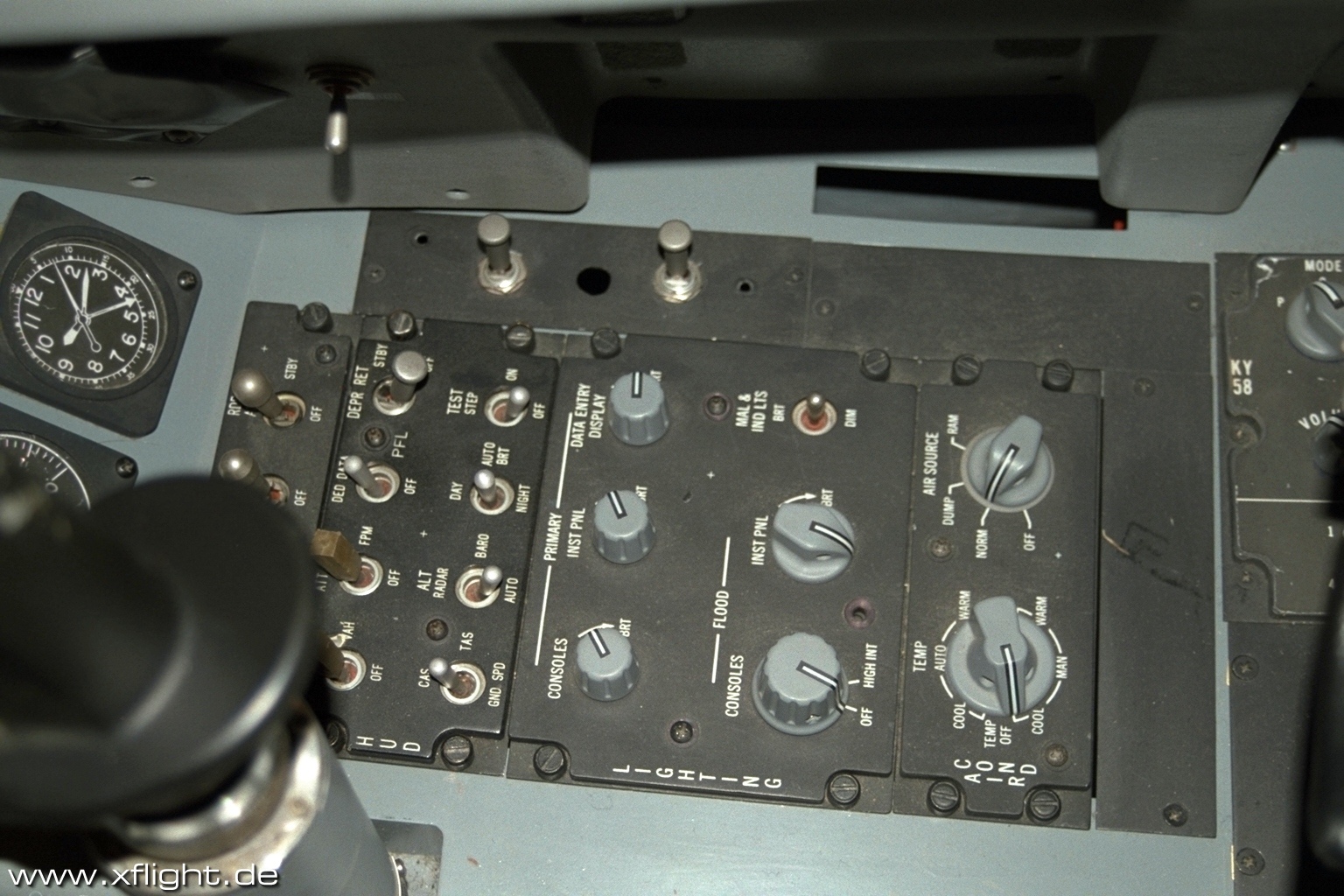

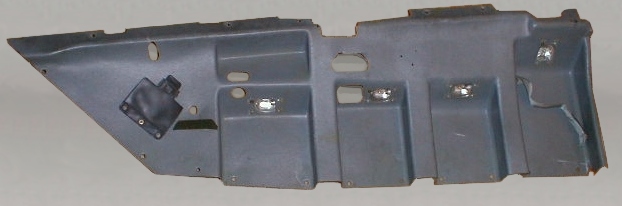

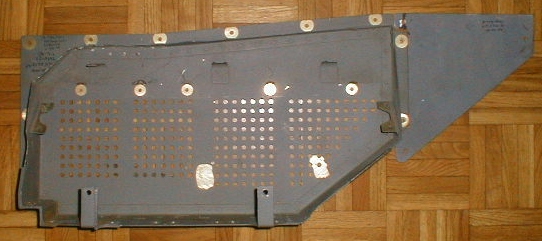

Pictures from the Right Console


Note:
To zoom please select the picture with your mouse.
