 AOA 29.11.2004

Angle of Attack Indicator

The AOA Indicator shows the actual Angle of Attack on a vertical moving scale. The range lies between +/-32°. This indicator is located on the center console. In simple form you can read the correct AOA on the AOA Indexer Lights.

The AOA Indicator
Drawings from the AOA Indicator
Pictures from the Angle of Attack Indicator


The Indicator

AOA

Note:
The showed panel drawing is a drawing with can be downloaded from my page Documents, plans and diagrams from the F-16.


Drawings from the AOA Indicator


Note:
To zoom please select the drawing with your mouse.

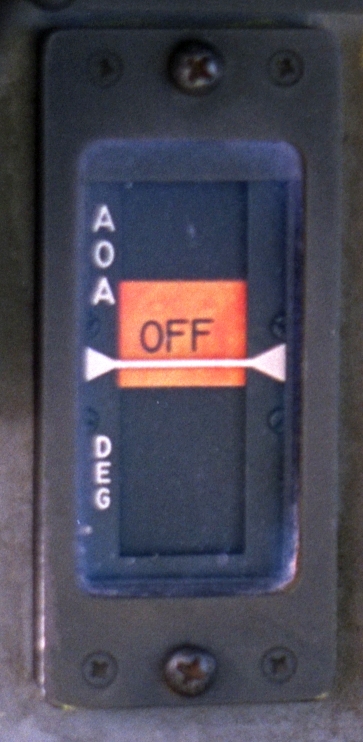

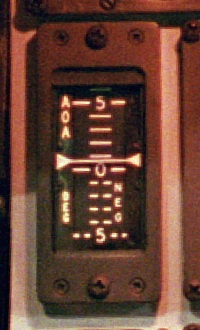

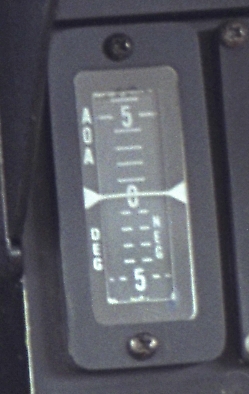

Pictures from the Angle of Attack Indicator


Note:
To zoom please select the picture with your mouse.
